Home>Products>Bearing>F Flange Bearing Series

Horn Bearing

F Flange Bearing Series

Model: F Flange Bearing Series

The main products are: turbine car anti-theft alarm, speaker accessories, turbine car spare parts and other products, sales market covers all over the world. At present, the company has a wide production space, precision and fast automated production equipment and excellent talents on the basis of the consistent business philosophy of "quality first, delivery on time, service first" and the spirit of "excellence", and the majority of customers to do better cooperation, common win-win situation.

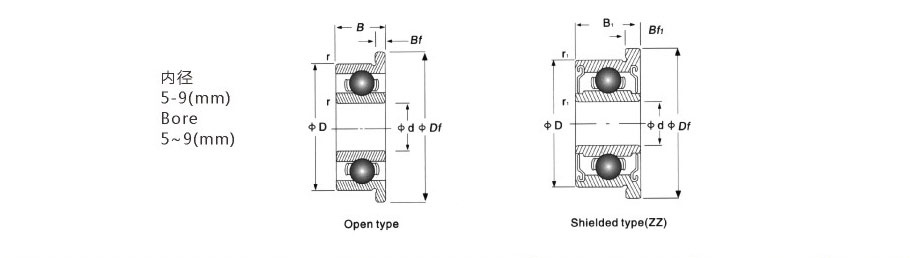

Product Specifications


外形尺寸(mm)									型号	额定负荷		极限转速
d	D	B	B1	r1	Df	Bf	Bf1	开式	防尘盖型	Cr	C0r	*1000rpm
2	5	1.5	2.3	0.08	6.1	0.5	0.6	F682	F682ZZ	169	50	85
	5	2.0	2.5	0.10	6.2	0.6	0.6	FMR52	FMR52ZZ	169	50	85
	6	2.3	3	0.15	7.5	0.6	0.8	F692	F692ZZ	330	99	75
	7	2.5	3	0.15	8.2	0.6	0.6	MF72	MF72ZZ	386	129	75
	7	2.8	3.5	0.15	8.5	0.7	0.9	F602	F602ZZ	386	129	71
2.5	6	1.8	2.6	0.08	7.1	0.5	0.8	F682X	F682XZZ	209	74	80
	7	2.5	3.5	0.15	8.5	0.7	0.9	F692X	F692XZZ	386	129	75
	8	2.8	4	0.15	9.5	0.7	0.9	F602X	F602XZZ	552	177	60
3	6	2.0	2.5	0.10	7.2	0.6	0.6	MF63	MF63ZZ	209	74	80
	7	2	3	0.10	8.1	0.5	0.08	F683	F683ZZ	311	112	75
	8	3	4	0.15	9.5	0.7	0.9	F693	F693ZZ	558	180	67
	9	2.5	4	0.20	10.2	0.6	0.8	MF93	MF93ZZ	571	189	67
	9	3	5	0.15	10.5	0.7	1	F603	F603ZZ	571	189	67
	10	4	4	0.15	11.5	1	1	F623	F623ZZ	631	219	60
4	8	2	3	0.15	9.2	0.6	0.6	MF84	MF84ZZ	395	141	67
	9	2.5	4	0.10	10.3	0.6	1	F684	F684ZZ	641	227	63
	10	3	4	0.20	11.2	0.6	0.8	MF104	MF104ZZ	711	272	56
	11	4	4	0.15	12.5	1	1	F694	F694ZZ	957	350	56
	12	4	4	0.20	13.5	1	1	F604	F604ZZ	957	350	56
	13	5	5	0.30	15	1	1	F624	F624ZZ	1301	488	48
	16	5	5	0.30	18	1	1	F634	F634ZZ	1340	523	43
5	8	2.0	2.5	0.10	9.2	0.6	0.6	MF85	MF85ZZ	218	90	63
	9	2.5	3	0.15	10.2	0.6	0.6	MF95	MF95ZZ	431	169	60
	10	3	4	0.15	11.2	0.6	0.8	MF105	MF105ZZ	431	169	60
	11	-	4	0.15	12.6	-	0.8	-	MF115ZZ	716	282	53
	11	3	5	0.15	12.5	0.8	1	F685	F685ZZ	716	282	53
	13	4	4	0.20	15	1	1	F965	F695ZZ	1077	432	50
	14	5	5	0.20	16	1	1	F605	F605ZZ	1329	507	50
	16	5	5	0.30	18	1	1	F625	F625ZZ	1729	675	43
	19	6	6	0.30	22	1.5	1.5	F635	F635ZZ	2336	896	40
6	10	2.5	3	0.15	11.2	0.6	0.6	MF106	MF106ZZ	496	218	53
	12	3	4	0.2	13.6	0.6	0.8	MF126	MF126ZZ	714	295	50
	13	3.5	5	0.15	15	1	1.1	F686	F686ZZ	1082	442	50
	15	5	5	0.2	17	1.2	1.2	F696	F696ZZ	1340	523	45
	17	6	6	0.3	19	1.2	1.2	F606	F606ZZ	2263	846	45
	19	6	6	0.3	22	1.5	1.5	F626	F626ZZ	2336	896	40
	22	7	7	0.3	25	1.5	1.5	F636	F636ZZ	3287	1379	36
7	11	2.5	3	0.15	12.2	0.6	0.6	MF117	MF117ZZ	455	202	50
3	13	3	4	0.2	14.2	0.6	0.8	MF137	MF137ZZ	541	276	48
	14	3.5	5	0.15	16	1	1.1	F687	F687ZZ	1173	513	50
	17	5	5	0.3	19	1.2	1.2	F697	F697ZZ	1605	719	43
	19	6	6	0.3	22	1.5	1.5	F607	F607ZZ	2336	896	43
	22	7	7	0.3	25	1.5	1.5	F627	F627ZZ	3287	1379	36
8	12	2.5	3.5	0.15	13.6	0.6	0.8	MF128	MF128ZZ	543	274	48
	14	3.5	4	0.2	15.6	0.8	0.8	MF148	MF148ZZ	817	396	45
	16	4	5	0.2	18	1	1.1	F688	F688ZZ	1252	592	43
	16	-	6	0.2	18	-	1.1	-	WF688ZZ	1252	592	43
	19	6	6	0.03	22	1.5	1.5	F698	F698ZZ	2237	917	43
	22	7	7	0.03	25	1.5	1.5	F608	F608ZZ	3293	1379	40
	24	8	8	0.3	27	1.5	1.5	F628	F628ZZ	3333	1423	34
9	17	4	5	0.2	19	1	1.1	F689	F689ZZ	1327	668	43
	20	6	6	0.3	23	1.5	1.5	F699	F699ZZ	2467	1081	40
	24	7	7	0.3	27	1.5	1.5	F609	F609ZZ	3356	1444	38
	26	8	8	0.3	28	2	2	F629	F629ZZ	4579	1970	34
10	15	3	4	0.1	16.5	0.8	0.8	F6700	F6700ZZ	577	302
	19	5	5	0.3	21	1	1	F6800	F6800ZZ	1600	756	34
	19	-	6	0.3	21	-	1	-	F62800ZZ	1600	756	34
	19	7	7	0.3	21	1.5	1.5	F63800	F63800ZZ	1600	756	34
	22	6	6	0.3	25	1.5	1.5	F6900	F6900ZZ	2696	1273	32
	26	8	8	0.3	28	2	2	F6000	F6000ZZ	4579	1970	34
	26	-	8	0.3	28	-	1.5	-	F6000ZZE	4579	1970	34
	30	-	9	0.6	32.25	-	2.25	-	F6200ZZ	5110	2390	30
12	18	4	4	0.2	19.5	0.8	0.8	F6701	F6701ZZ	880	491	30
	21	5	5	0.3	23	1.1	1.1	F6801	F6801ZZ	1917	1042	30
	21	7	7	0.3	23	1.5	1.5	F63801	F63801ZZ	1917	1042	30
	24	6	6	0.3	26.5	1.5	1.5	F6901	F69012ZZ	2892	1454	28
	28	8	8	0.3	30	-	2	-	F6001ZZ	5114	2387	26
	32	-	10	0.6	34.5	-	2.5	-	F6201ZZ	6819	3060	26
15	21	4	4	0.2	22.5	0.8	0.8	F6702	F6702ZZ	846	498	-
	24	5	5	0.3	26	1.1	1.1	F6802	F6802ZZ	2075	1257	28
	28	7	7	0.3	30.5	1.5	1.5	F6902	F6902ZZ	4032	2029	26
	32	9	9	0.6	34.25	2.25	2.25	F6002	F6002ZZ	5590	2840	26
	35	11	11	0.6	37.75	-	2.75	-	F6202ZZ	7635	3722	23
17	23	4	4	0.2	24.5	0.8	0.8	F6703	F6703ZZ	871	534	-
	26	5	5	0.3	28	1.1	1.1	F6803	F6803ZZ	2136	1368	26
	26	-	7	0.3	28	-	1.5	-	F63803ZZ	2136	1368	26
	30	7	7	0.3	32.5	1.5	1.5	F6903	F6903ZZ	4596	2551	24
	35	10	10	0.6	37.5	2.5	2.5	F6003	F6003ZZ	6000	3250	24
	40	12	12	0.6	43	3	3	F6203	F6203ZZ	9570	4790	21
20	32	7	7	0.3	35.00	1.5	1.5	F6804	F6804ZZ	3480	2230	22
	37	9	9	0.3	40	2.2	2.2	F6904	F6904ZZ	6370	3680	22
	42	8	-	0.6	45	2	2	F16004	-	-	-	20
	42	-	12	0.6	45	-	-	-	F6004ZZ	9390	5020	21
25	37	7	7	0.3	40	1.5	1.5	F6805	F6805ZZ	3832	2800	19
	42	9	9	0.3	45	2	2	F6905	F6905ZZ	6660	4180	18
	47	12	12	0.6	50	3	3	F6005	F6005ZZ	10060	5850	18
30	42	7	7	0.6	45	1.5	1.5	F6806	F6806ZZ	4000	3150	17
	47	9	9	0.3	50	2.25	2.25	F6906	F6906ZZ	7240	5010	16
	55	13	13	0.6	58.25	3.25	3.25	F6006	F6006ZZ	13230	8300	15
35	55	10	10	0.60	58	2.50	2.50	F6907	F6907ZZ	10390	7160
	47	7	7	0.3	50	1.50	1.50	F6807	F6807ZZ	42700	3600
